ZKH (V) series mixer

Product Name:ZKH (V) series mixer

Keywords:ZKH (V) series mixer,Drying Equipment, Drying Mach
Overview:The structure of mixing barrel is unique.The mixing effciency is high, no dead corner. The barrel is made of s tainless steel and its internal walls a repolished. The outside qppearance is beautiful.

Description

Characteristics
  The structure of mixing barrel is unique.The mixing effciency is high, no dead corner. The barrel is made of s tainless steel and its internal walls a repolished. The outside qppearance is beautiful. The mixing is uniform, with wide application.
Material to be dried
  The mixer is used for mixing the dry material grains in the medical,chemical,food,metallurgical and other industries.

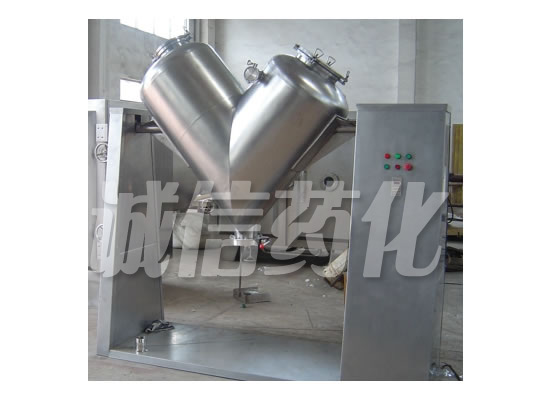

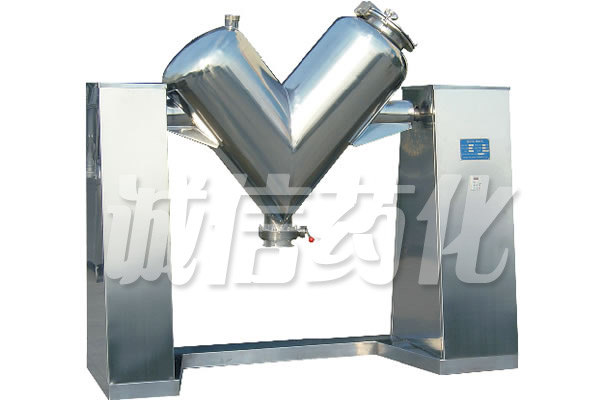

ZKH (V) series mixer
Technical Parameter

spec\item total volume
L
material capcity
L
working capacity
kg
rotating speed
rpm
power
kw
weight
kg
0.05 50 25 15 25 0.55 500
0.15 150 75 45 20 0.75 650
0.3 300 150 90 20 1.1 820
0.5 500 250 150 18 1.5 1250
1 1000 500 300 15 3 1800
1.5 1500 750 450 12 4 2100
2 2000 1000 600 12 5.5 2450
3 3000 1500 900 9 5.5 2980
4 4000 2000 1200 9 7.5 3300
5 5000 2500 1500 8 7.5 3880
6 6000 3000 1800 8 11 4550
8 8000 4000 2400 6 15 5200
10 10000 5000 3000 6 18.5 6000
