WFJ Series Micro Grinder
Product Name：WFJ Series Micro Grinder
Keywords：WFJ series micro grinder,grinder
Overview：The equipment consists of main machine, assistant machine and control cabinet.The process of produce is continuous.The machine is extensively used in pharmaceutical, chemical, food industries for pulv
Description
General Descriptions

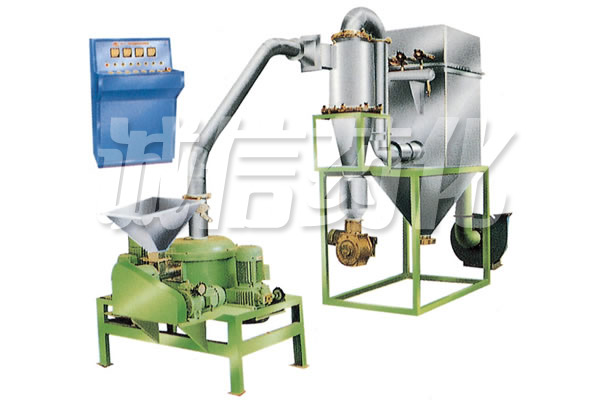

The equipment consists of main machine, assistant machine and control cabinet.The process of produce is continuous.The machine is extensively used in pharmaceutical, chemical, food industries for pulverizing dry brittle materials .
Technical Parameter
| Spec | unit | WFJ-15 | WFJ-18 | WFJ-32 |
| production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| inlet material diamenter | mm | ＜10 | ＜10 | ＜15 |
| oulet material diamenter | mesh | 80-320 | 80-450 | 80-450 |
| power | kw | 13.5 | 17.5 | 46 |
| main rotaing speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| overall dimension(L×W×H) | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
